Description

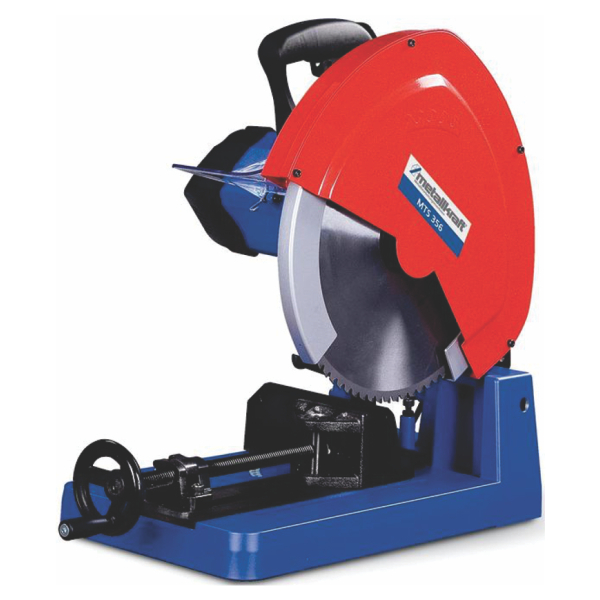

MTS 356
Metal drier Schneider
Metal hand circular saw / dry cutter
Metal Kraft
Technical specifications
| Saw blade speed(s) |
1300 min¯¹ |
| Saw blade diameter |
355 mm |
| VPE |
1 |
| Cutting capacity |
| 0° (round) pipe |
132 mm |
| 0° (square) pipe |
120 x 120 mm |
| 0° (rectangle) pipe |
100 x 180 mm |
| -39° (rectangle) pipe |
120 x 90 mm |
| -39° (square) pipe |
90 x 90 mm |
| -39° (round) pipe |
105 mm |
| +45° (round) pipe |
105 mm |
| +45° (square) pipe |
90 x 90 mm |
| +45° (rectangle) pipe |
120 x 90 mm |
| Dimensions and weights |
| Weight approx. |
23.5 kg |
| Electric Data |
| Supply voltage |
230 V |
| Mains frequency |
50 Hz |
description
-
- Extremely stable and robust construction
- Easy to transport
- For burr-free sawing of profiles and tubes made of steel, iron, copper, brass, aluminum,
plastics, composites and stainless steel without coolant
- Application eg in metal construction, in carpentry, interior fitters etc.
- Motor with soft start, therefore easier handling when switching on the saw
- Standard with a prism clamping jaw for clamping pipes
- Vise with quick adjustment
- Safe stand thanks to die-cast aluminum base
- Angle for miter cuts
- Right 45°, left 39°
- With spindle lock for faster saw blade change
Equipment details
- Miter angle easy to read on scale
- Vise steplessly adjustable from right 45°, left 39° swiveling
- Vise with quick adjustment
- Saw equipped with quick-action vise, by switching the lever switching between quick-release
- Prismatic vice for pipes
- (second prism jaws optional, item no. 3850355)
Scope of delivery & equipment
- 4, 6 and 8 mm hex keys
- safety goggles
- 1 prism clamping jaw
- Without saw blade
