| Dimensions and weights | |
|---|---|
| Max. length | 950 mm |
| Max. width/depth | 660 mm |
| Max. height | 820 mm |
| Length approx. | 850 mm |
| Width/depth approx. | 300 mm |
| Height approx. | 680 mm |
| Weight approx. | 23 kg |
R20,579.85
R20,579.85

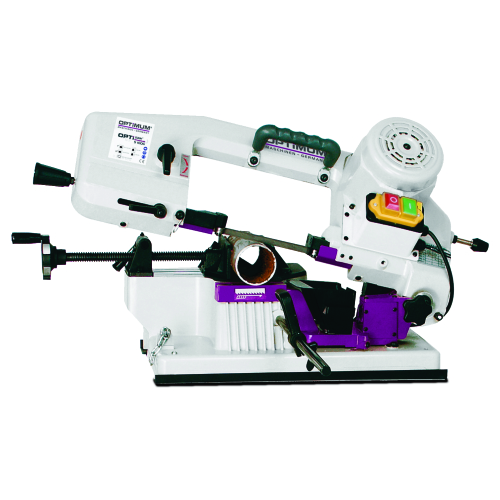

Metal band saw
OPTIsaw S 100G
Technical Specifications
| Cutting ranges | |
|---|---|
| 0° round (full material) | 100 mm |
| 0° quadratic (full material) | 100 mm |
| 0° rectangle horizontal (full material) | 100 x 150 mm |
| +45° round (full material) | 65 mm |
| +45° quadratic (full material) | 60 mm |
| +45° rectangle horizontal (full material) | 60 x 100 mm |
| Dimensions and weights | |
|---|---|
| Max. length | 950 mm |
| Max. width/depth | 660 mm |
| Max. height | 820 mm |
| Length approx. | 850 mm |
| Width/depth approx. | 300 mm |
| Height approx. | 680 mm |
| Weight approx. | 23 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
|---|---|
| Saw band speed(s) | 45 m/min |
| Saw band length | 1470 mm |
| Saw band width | 13 mm |
| Saw band thickness | 0.65 mm |
| Cutting angle | 0 – 45 ° |
| VPE | 1 |
Description
Scope of delivery
| Brand |
|---|
