Description

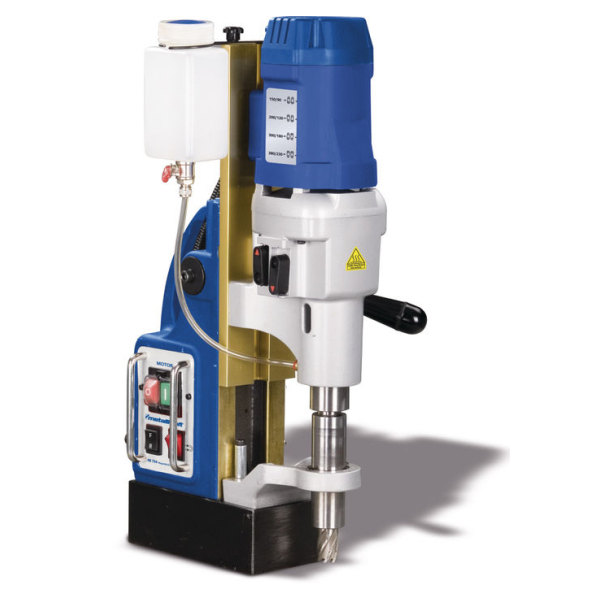

Magnetic drilling machine
Technical Specifications
| Max. drill Ø / Core drilling |
75 mm |
| Max. drilling depth / Core drilling |
50 mm |
| Max. drill Ø / Full drilling directly mounted |
32 mm |
| Max. drilling depth / Full directly mounted |
150 mm |
| Max. drill Ø / Full drilling adapter and drill chuck |
16 mm |
| Max. drilling depth / Full drilling adapter and drill chuck |
110 mm |
| Spindle chuck |
MK 3 |
| Weldon shaft holder |
19 mm |
| Speed under load |
90 / 120 / 180 / 230 rpm |
| Motor output |
2 kW |
| Electrical connections |
230 V |
| Phase(s) |
1 Ph |
| Kind of current |
~ |
| Mains frequency |
50 Hz |
| Magnetic holding force |
32000 N |
| Magnetic foot dimensions |
200 x 100 mm |
| Max. dimension |
330 x 125 x 476 mm |
| Weight |
24.8 kg |
| Sound pressure level |
97 dB(A) |
| Sound power level |
110 dB(A) |
| Uncertainty of measurement K |
3 dB(A) |
| Vibration |
Description
- High-quality magnetic core drilling machines for versatile use. Drilling large diameters economically and rapidly.
- For core drills with 19 mm Weldon shaft
- Stable drilling guidance thanks to long and especially deep-mounted spindle sleeve guidance
- Device is earthed and double isolated, hence ideal for building sites
- High magnetic holding force
- Highest-quality design
- The coolant is routed through the drill
- Conversion from core to full drilling in just a few actions
- Safe and reliable function
Special features MB 754
- 4 speeds
- with 2000 Watt motor
- Max. magnetic holding force of 32,000 N
- With spindle chuck MK 3
- Clockwise/Anti-clockwise rotation
Features:
- Four speeds
- With 2000 Watt motor
- Max. magnetic holding force of 32,000 N
- With spindle chuck MK 3
- Clockwise/Anti-clockwise rotation
- Multiple speed ranges adjustable
- Conversion from core to full drilling with just a few actions
Delivery Information
- Coolant tank and coolant line
- Protection device
- Operating tool
- Plastic carrying case
- Chain
- clearing cotter
